Adjustment [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SHIFT LEVER POSITION SENSOR POSITION

Apply the parking brake.
Chock all 4 wheels to secure the vehicle.
Turn the power switch on (READY).
Move the shift lever to D and release the brake.
NOTE:
Be sure to apply the parking brake and chock all 4 wheels to secure the vehicle.

Slowly move the shift lever to N and measure moving distance (A) of the shift lever from the original point to the gear disengagement point.

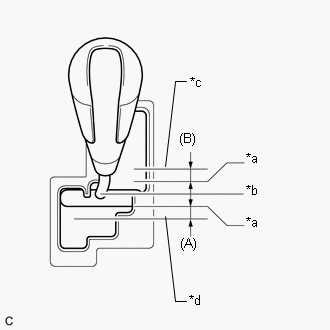

Fig 1: Identifying Gear Disengagement Point, N Position, R Position And D Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Gear Disengagement Point
*b	N Position
*c	R Position
*d	D Position

NOTE:

Be sure to move the shift lever slowly.

Move the shift lever to R and release the brake.
NOTE:
Be sure to apply the parking brake and chock all 4 wheels to secure the vehicle.
Slowly move the shift lever to N and measure moving distance (B) of the shift lever from the original point to the vehicle disengagement point.
NOTE:
Be sure to move the shift lever slowly.
Check that moving distances (A) and (B) shown in the illustration are almost the same.
HINT:
- If moving distances (A) and (B) are almost the same, adjustment of the shift lever position is not necessary.
- If moving distance (A) is shorter than (B), perform adjustment of the shift lever position [*1].
- If moving distance (B) is shorter than (A), perform adjustment of the shift lever position [*2].

ADJUST SHIFT LEVER POSITION SENSOR POSITION
1. If moving distance (A) is shorter than (B) [*1]
  1. Move the shift lever to N.
  2. Loosen the 2 bolts.

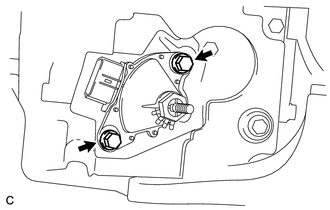

    Fig 2: Identifying Shift Lever Position Sensor Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Slightly turn the shift lever position sensor counterclockwise.

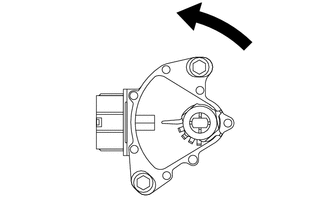

    Fig 3: Turning Shift Lever Position Sensor Counterclockwise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the shift lever is moved from R to N, the moving distance of the shift lever from the original point to the gear disengagement point becomes longer.
  4. Tighten the 2 bolts in the order shown in the illustration.

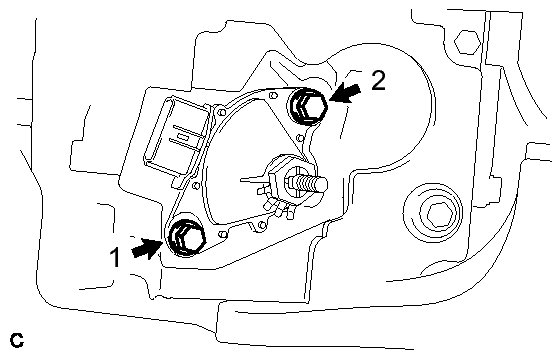

    Fig 4: Identifying Shift Lever Position Sensor Bolt Tightening Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
  5. Recheck the shift lever position sensor.
2. If moving distance (B) is shorter than (A) [*2]
  1. Move the shift lever to N.
  2. Loosen the 2 bolts.

    Fig 5: Identifying Shift Lever Position Sensor Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Slightly turn the shift lever position sensor clockwise.

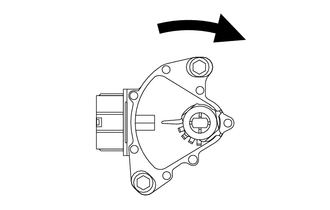

    Fig 6: Turning Shift Lever Position Sensor Clockwise
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the shift lever is moved from D to N, the moving distance of the shift lever from the original point to the gear disengagement point becomes longer.
  4. Tighten the 2 bolts in the order shown in the illustration.

    Fig 7: Identifying Shift Lever Position Sensor Bolt Tightening Sequence
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
  5. Recheck the shift lever position sensor.
