Overview - Wheel Spoiler

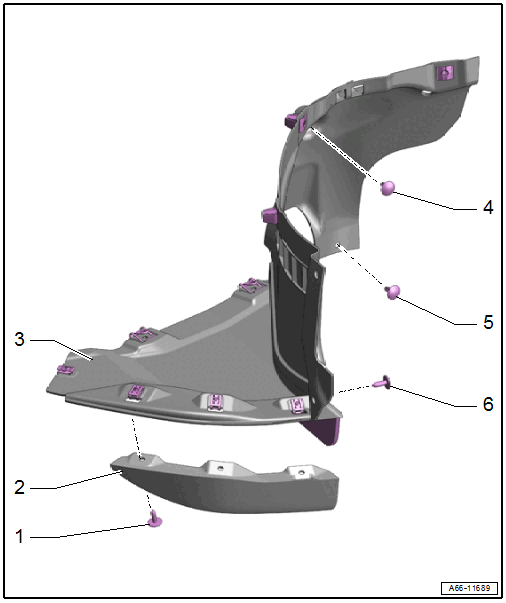

Fig 1: Wheel Spoiler
GWWA66-11689Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2 Nm
    • Quantity: 3
  2. Spoiler Lip
  3. Front Wheel Spoiler
  4. Clip/Bolt
    • Bolt: 7.5 Nm
  5. Expanding Rivet
  6. Bolt
    • 2 Nm
