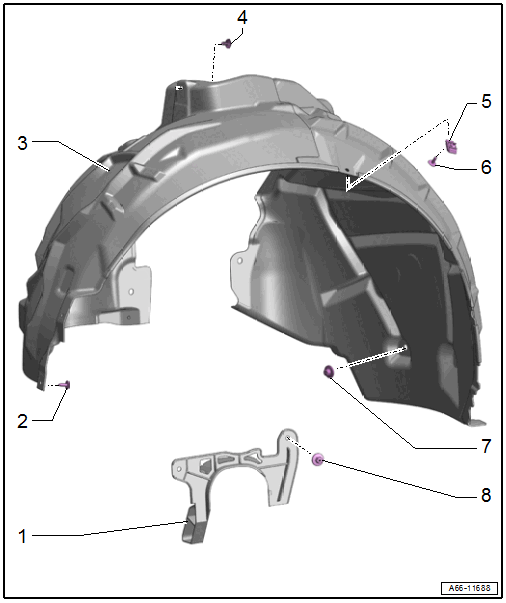

Overview - Wheel Housing Liner
- Drive Axle Cover
- Removing and Installing. Refer to DRIVE AXLE COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 6
- Front Wheel Housing Liner
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Clip
- Bracket
- For the wheel housing liner to the fender
- Bolt
- 2 Nm
- Nut
- 2 Nm
- Quantity: 5
- Nut
- Quantity: 2
- 2 Nm
