Overview - Wheel Housing Liner Covers

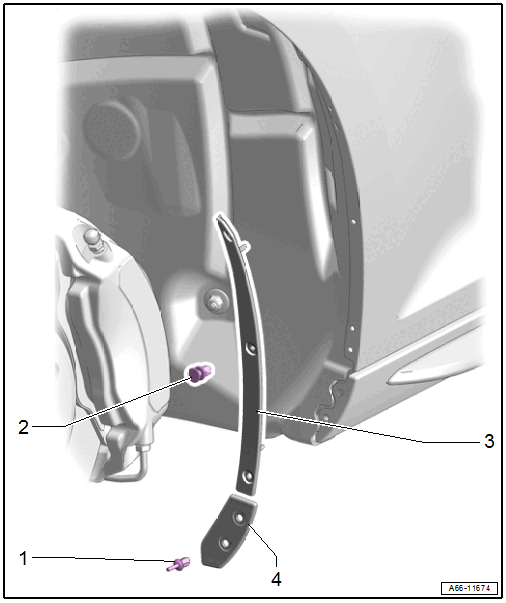

Fig 1: Wheel Housing Liner Covers

Courtesy of AUDI OF AMERICA, LLC

Expanding Rivet
- Quantity: 2
Expanding Rivet
- Quantity: 3
Fender Cover
- For the wheel housing liner
- Removing and Installing. Refer to FENDER COVER, REMOVING AND INSTALLING: .
Side Sill Cover
- For the wheel housing liner
- Removing and Installing. Refer to SIDE SILL COVER, REMOVING AND INSTALLING: .
