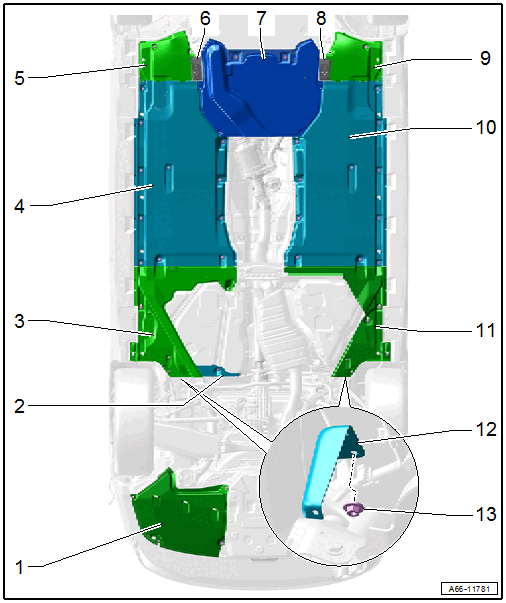

Overview - Underbody Trim Panels

Fig 1: Underbody Trim Panels

Courtesy of AUDI OF AMERICA, LLC

1. Side Underbody Trim Panel
   • Removing and Installing. Refer to SIDE UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Nut 2 Nm
     • Bolt 2 Nm
2. Fuel Tank Underbody Trim Panel
   • Tightening Specifications:
     • Nut 2 Nm
3. Rear Underbody Trim Panel
   • Right
   • Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
   • G-TRON:  removing and installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, G-TRON, RIGHT .
   • Tightening Specifications:
     • Nut 2 Nm
     • Bolt 2 Nm
4. Center Underbody Trim Panel
   • Right
   • Removing and Installing. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Nut 2 Nm
     • Bolt 2 Nm
5. Front Underbody Panel
   • Right
   • Removing and Installing. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Nut 2 Nm
6. Impact Protector
   • Right
7. Tunnel Underbody Trim Panel
   • Equipped on some models
   • Removing and Installing. Refer to UNDERBODY TRIM PANEL TUNNEL, REMOVING AND INSTALLING .
   • Expanding Rivet
   • Tightening Specifications:
     • Bolt 2 Nm
8. Impact Protector
   • Left
9. Front Underbody Panel
   • Left
   • Removing and Installing. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
   • Tightening Specifications:
     • Nut 2 Nm
10. Center Underbody Trim Panel
    • Left
    • Removing and Installing. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
    • Tightening Specifications:
      • Nut 2 Nm
      • Bolt 2 Nm
11. Rear Underbody Trim Panel
    • Left
    • Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
    • Tightening Specifications:
      • Nut 2 Nm
      • Bolt 2 Nm
12. Bracket
    • For the rear underbody trim panel
13. Nut
    • 8 Nm

Overview - Spare Tire Underbody Trim Panel

Fig 2: Overview - Spare Tire Underbody Trim Panel

Courtesy of AUDI OF AMERICA, LLC

• Removing and Installing. Refer to UNDERBODY TRIM PANEL SPARE TIRE, REMOVING AND INSTALLING .
• Nut:2 Nm
