Overview - Underbody Bracing, RS4

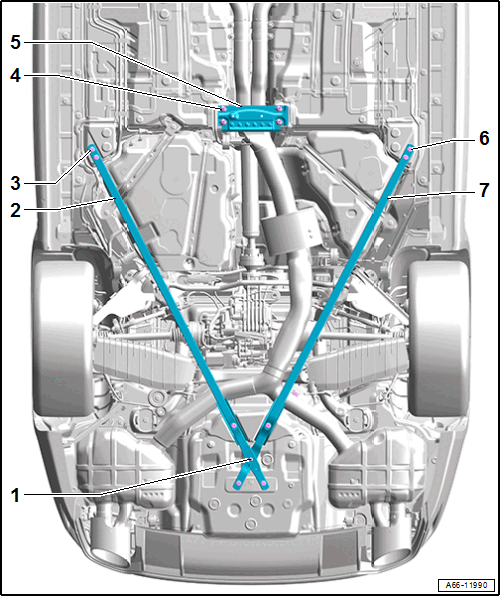

Fig 1: Underbody Bracing, RS4

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm
- Replace after removing.
Diagonal Brace
- Right
- Removing and Installing. Refer to REAR DIAGONAL BRACES, REMOVING AND INSTALLING, A4 AND A5 .
Bolt
- 50 Nm + 90°
- Replace after removing.
- Quantity: 4
Bolt
- 55 Nm
- Quantity: 4
Tunnel Brace
- Removing and Installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
Bolt
- 50 Nm + 90°
- Replace after removing.
- Quantity: 4
Diagonal Brace
- Left
- Removing and Installing. Refer to REAR DIAGONAL BRACES, REMOVING AND INSTALLING, A4 AND A5 .
