Overview - Underbody Bracing, A4 And A5 SPORTBACK

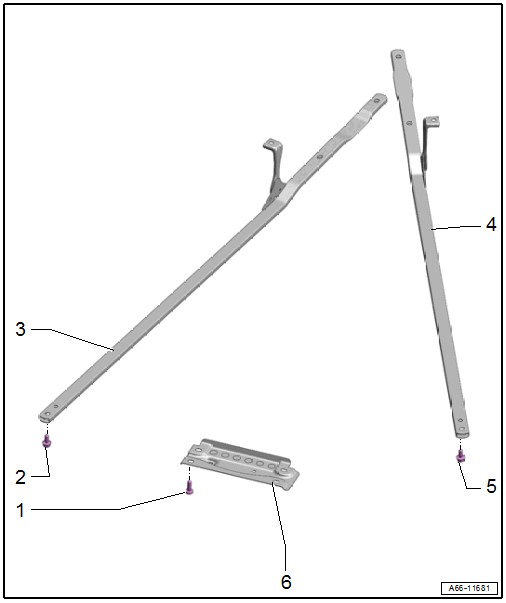

Fig 1: Underbody Bracing, A4 And A5 Sportback

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 55 Nm
   • Quantity: 4
2. Bolt
   • 50 Nm  + 90°
   • Replace after removing.
   • A4  : quantity 5
   • A5 Sportback:  quantity 4
3. Diagonal Brace
   • Right
   • G-TRON:  Different Attachment Point Layout
   • Removing and Installing. Refer to REAR DIAGONAL BRACES, REMOVING AND INSTALLING, A4 AND A5 .
4. Diagonal Brace
   • Left
   • G-TRON:  Different Attachment Point Layout
   • Removing and Installing. Refer to REAR DIAGONAL BRACES, REMOVING AND INSTALLING, A4 AND A5 .
5. Bolt
   • 50 Nm  + 90°
   • Replace after removing.
   • A4:  quantity 5
   • A5 Sportback:  quantity 4
6. Tunnel Brace
   • Removing and Installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
