Convertible Top Compartment Cover Trim Molding, Removing And Installing: Removing

-- Bring the convertible top into its service position. Refer to CONVERTIBLE TOP AND CONVERTIBLE TOP COMPARTMENT COVER SERVICE POSITION => Position "1" : .

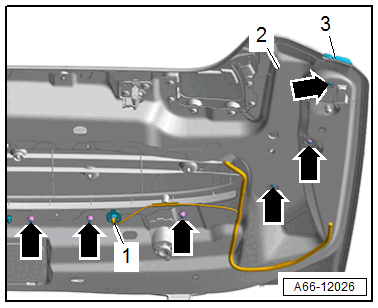

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

-- REMOVE THE TRIM MOLDING -3- CAREFULLY FROM THE CONVERTIBLE TOP COMPARTMENT COVER -2-.
