Overview - Windshield Frame Trim

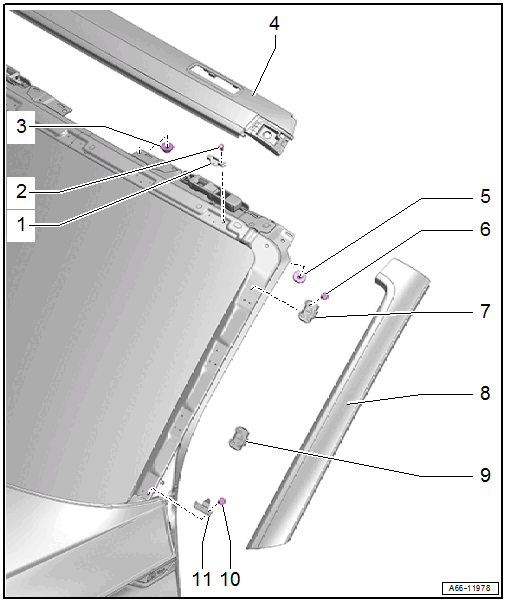

Fig 1: Exploded View Of Windshield Frame Trim

Courtesy of AUDI OF AMERICA, LLC

Clip
- For the windshield frame trim
- Quantity: 5
- Replace After Removing.
- Removing and Installing. Refer to WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
Pop Rivet
- Quantity: 3
- For the clip
Nut
- 4.5 Nm
- Quantity: 2
Windshield Frame Trim
- Replace after replacing the clips
- Removing and Installing. Refer to WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
Nut
- 4.5 Nm
Pop Rivet
- Quantity: 3
- For the clip
Clip
- For the side windshield frame trim
- Quantity: 2
- Replace after removing.
- Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
Side Windshield Frame Trim
- Replace after replacing the clips
- Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
Clip
- For the side windshield frame trim
- Bonded
- Replace after removing.
- Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
Pop Rivet
- Quantity: 2
- For the clip
Clip
- For the side windshield frame trim
- Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
