Overview - Trim Molding, A4

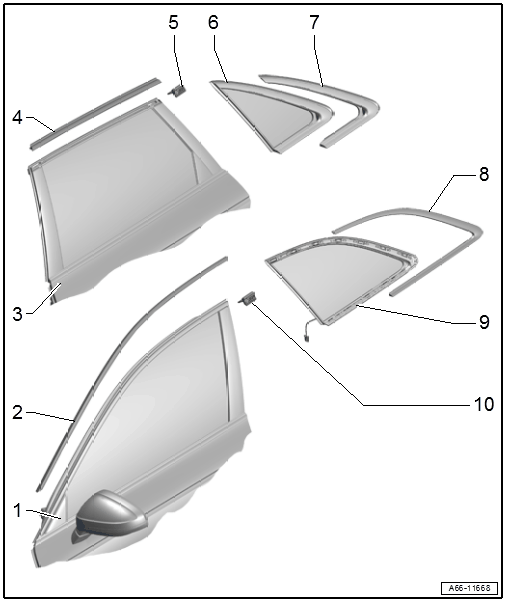

Fig 1: Trim Molding, A4

Courtesy of AUDI OF AMERICA, LLC

Front Door
Front Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, FRONT DOOR .
Rear Door
Rear Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, REAR DOOR .
Clip
- With "rear door" label
Side Window, A4 Sedan
Side Window Trim Molding, A4 Sedan
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, SIDE WINDOW .
Side Window Trim Molding, A4 Avant
- Only removable with the side window
- Side Window, Removing and Installing. Refer to UNDAMAGED SIDE WINDOW, REMOVING, A4 AVANT .
Side Window, A4 Avant
Clip
- With "front door" label
