Overview - Convertible Top Compartment Cover Trim Molding

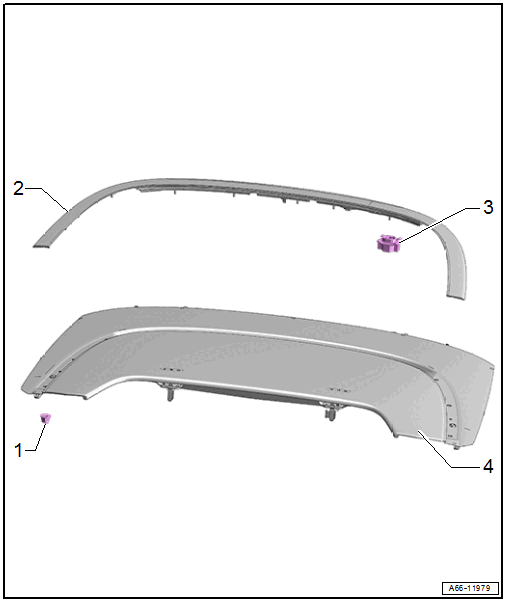

Fig 1: Identifying Convertible Top Compartment Cover Trim Molding

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • Quantity: 11
   • 2 Nm
2. Trim Molding
   • For the convertible top compartment cover
   • Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT COVER TRIM MOLDING, REMOVING AND INSTALLING .
3. Spacer
   • Cannot be replaced separately
   • Quantity: 5
4. Convertible Top Compartment Cover
   • Overview. Refer to OVERVIEW - CONVERTIBLE TOP COMPARTMENT COVER .
