Overview - Air Intake Pipe To The Body

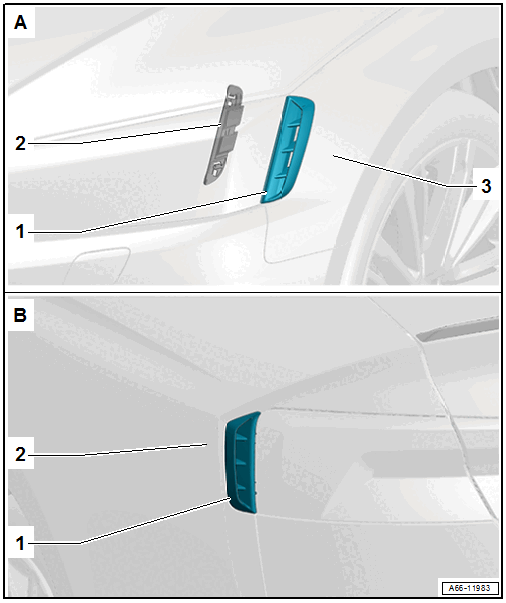

Fig 1: Identifying Air Intake Pipe To The Body

Courtesy of AUDI OF AMERICA, LLC

A - Air Intake Pipe on the Body Front
1 - Fender Trim
- Replace after removing.
- Removing and Installing. Refer to FENDER TRIM, REMOVING AND INSTALLING .
2 - Bracket
- For The Front Trim
- Replace After Removing.
3 - Fender
B - Air Intake Pipe on the Body Rear
1 - Side Panel Trim
- Replace After Removing.
- Removing and Installing. Refer to SIDE PANEL TRIM, REMOVING AND INSTALLING .
2 - Side Panel
