Overview - Adhesive On Glass Panel, A5 SPORTBACK

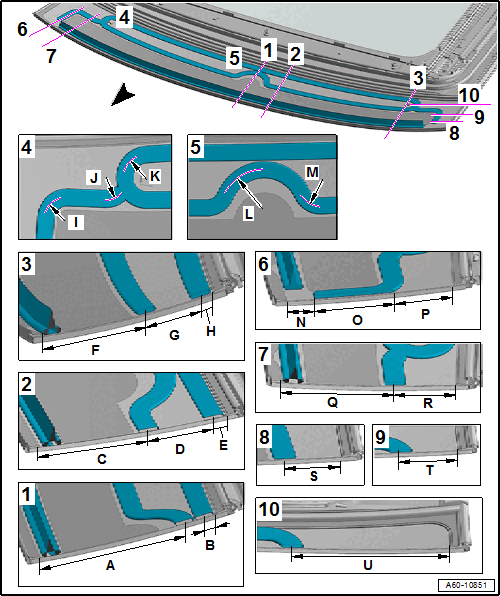

Fig 1: Overview - Adhesive On Glass Panel, A5 Sportback

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Opening
   • Dimension -A- = 124.4 mm
   • Dimension -B- = 9.7 mm
2. Opening
   • Dimension -C- = 87.9 mm
   • Dimension -D- = 53.8 mm
   • Dimension -E- = 9.7 mm
3. Opening
   • Dimension -F- = 102.5 mm
   • Dimension -G- = 42.9 mm
   • Dimension -H- = 9.7 mm
4. Opening
   • Dimension -I- = 31 mm
   • Dimension -J- = 14 mm
   • Dimension -K- = 65.5 mm
5. Opening
   • Dimension -L- = 42.5 mm
   • Dimension -M- = 21.7 mm
6. Opening
   • Dimension -N- = 22.9 mm
   • Dimension -O- = 64.8 mm
   • Dimension -P- = 46 mm
7. Opening
   • Dimension -Q- = 88.2 mm
   • Dimension -R- = 47.9 mm
8. Opening
   • Dimension -S- = 39.8 mm
9. Opening
   • Dimension -T- = 43.2 mm
10. Opening
    • Dimension -U- = 119.9 mm

TIP:

Dimensions for front adhesive of the glass panel. Refer to OVERVIEW - ADHESIVE BEADS ON SLIDING SUNROOF, A5 SPORTBACK .
