Overview - Adhesive On Sunroof Frame And Glass Panel, A5 Coupe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

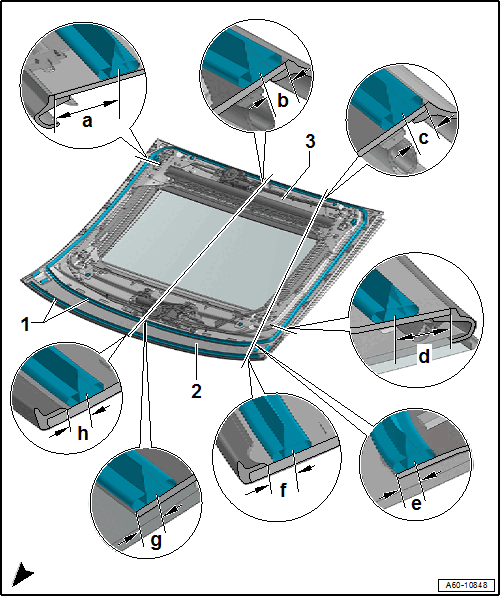

1. Adhesive Bead
   • Dimension -a- = 25.6 mm
   • Dimension -b- = 8.4 mm
   • Dimension -c- = 8.4 mm
   • Dimension -d- = 18.9 mm
   • Dimension -e- = 8 mm
   • Dimension -f- = 9.8 mm
   • Dimension -g- = 8.2 mm
   • Dimension -h- = 9.4 mm
2. Glass Trim
3. Sunroof Frame
