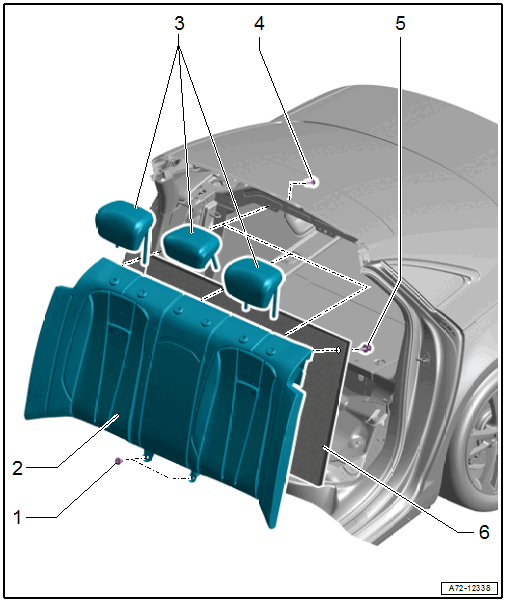

Overview - Rear Seat Backrest, Fixed
- Bolt
- 33 Nm
- Quantity: 2
- Fixed Rear Seat Backrest
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
- Headrest
- Overview. Refer to OVERVIEW - HEADREST AND HEADREST GUIDE .
- Bolt
- 35 Nm
- Quantity: 3
- Clip
- Quantity: 8
- Rear Panel Trim Panel
- Removing and installing. Refer to REAR PANEL TRIM PANEL, REMOVING AND INSTALLING, FIXED REAR SEAT BACKREST .
