Overview - Headrest, Super Sport Seat

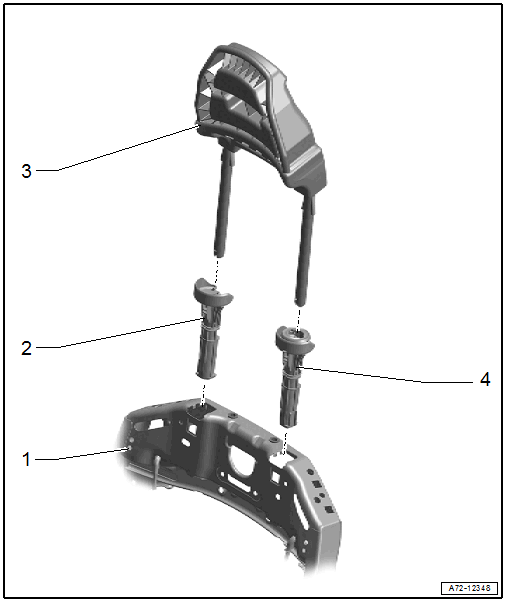

Fig 1: Exploded View Of Headrest, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Backrest Frame
Right Headrest Guide
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Press until all three retainers are completely locked into the backrest frame
Headrest
- Integrated, not adjustable
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, SUPER SPORT SEAT .
- Must be correctly locked in the headrest guides
Left Headrest Guide
- With headrest release ring
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Press until all three retainers are completely locked into the backrest frame
