Overview - Front Backrest, Super Sport Seat

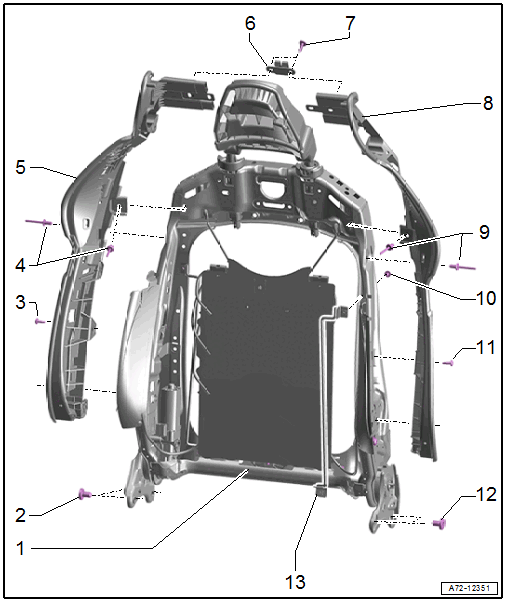

Fig 1: Exploded View Of Front Backrest, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Backrest
- Removing and installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
Bolt
- Replace after removing.
- Tightening specification. Refer to -Item 9-
- Quantity: 2
- Self-locking
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
Bolt
- 5 Nm
Rivet
- Quantity: 3
Side Bolster
- Removing and installing. Refer to SIDE BOLSTER, REMOVING AND INSTALLING .
Hook
- For backrest cover
- Removing and installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
Bolt
- 5 Nm
- Quantity: 2
Side Bolster
- Removing and installing. Refer to SIDE BOLSTER, REMOVING AND INSTALLING .
Rivet
- Quantity: 3
Bolt
- 5 Nm
- Quantity: 2
Bolt
- 5 Nm
Bolt
- Replace after removing.
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- Tightening specification. Refer to -Item 9-
- Quantity: 2
- Self-locking
Upholstery Wire
- Quantity: 2
