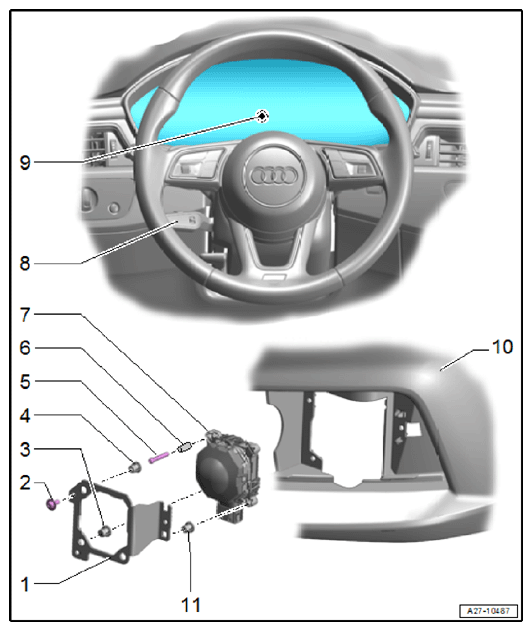

6.1 Component Location Overview - Adaptive Cruise Control (ACC)

Retaining Plate
- Removing and Installing. Refer to 6.2.2 Retaining Plate for Distance Regulation Control Modules - J428-/-J850-, Removing and Installing
Bolt
- 2.5 Nm
- Quantity: 3
Clip
- Closed version
- Cannot be removed without being damaged
- Note the installation position
Clip
- Open version
- Cannot be removed without being damaged
Stud Bolt
- Quantity: 3
- Note the adjustment dimension. Refer to
Clip
- Must be replaced when the stud bolt is removed
- Replacing. Refer to 6.2.3 Clip on Distance Regulation Control Module - J428-, Replacing
- Quantity: 3
Distance Regulation Control Module
- Right: Distance Regulation Control Module - J428-
- Left: Distance Regulation Control Module 2 - J850-
  - Removing and Installing. Refer to 6.2.1 Distance Regulation Control Modules - J428-/-J850-, Removing and Installing
  - Calibrate the adaptive cruise control (ACC).
Operating Lever for Adaptive Cruise Control
- Shared component with the steering column switch module. Cannot be replaced separately
- Removing and Installing. Refer to Steering Column Switch Module, Removing and Installing
Instrument Cluster
- With Instrument Cluster Control Module - J285-
Front Bumper
Clip
- Open version
- Cannot be removed without being damaged
