Vehicle Cabin Grounds, 48V Hybrid, Part II

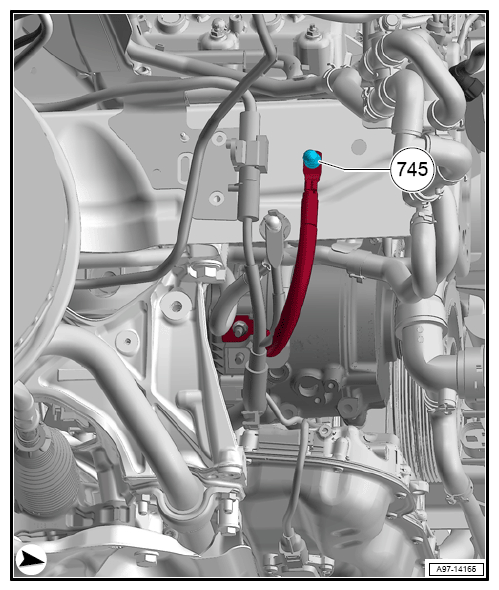

  1. 745 - Ground Connection 3 (on right front long member)
    • for vehicles with 48 V hybrid system
    • Torque Setting 20 Nm
G12767447Courtesy of AUDI OF AMERICA, LLC
