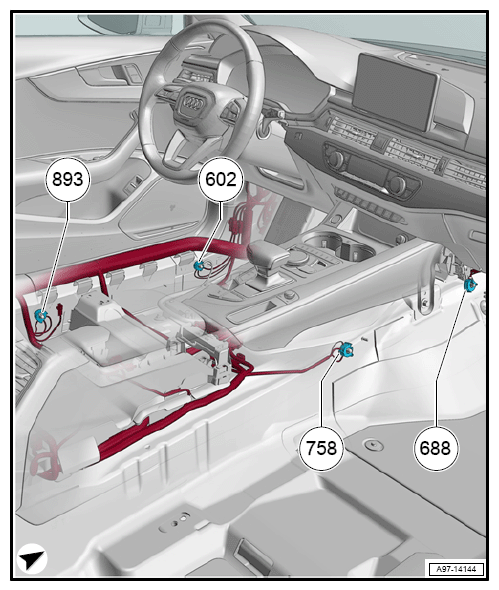

Vehicle Cabin Grounds, Center II

  1. 758 - Ground Connection 3 (on center tunnel)
    • Torque Setting 9 Nm
  2. 688 - Ground Connection 2 (on center tunnel)
    • Torque Setting 9 Nm
  3. 602 - Ground Connection (in front left footwell)
    • Torque Setting 9 Nm
  4. 893 - Ground Connection 2 (on left B-pillar)
    • Torque Setting 9 Nm
G12767438Courtesy of AUDI OF AMERICA, LLC
