Vehicle Cabin Grounds, Center I

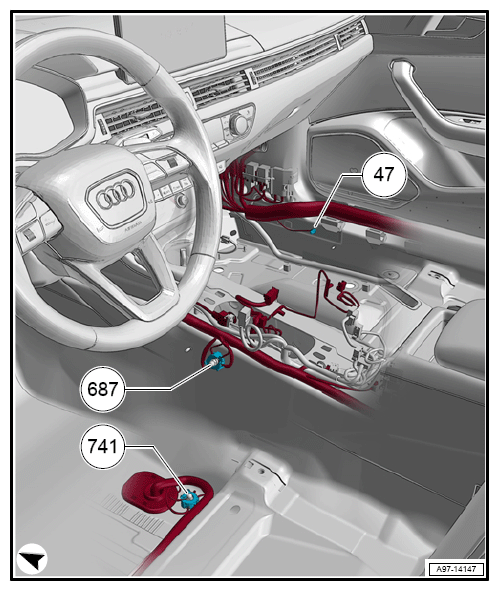

  1. 47 - Ground Connection (in front right footwell)
    • Torque Setting 9 Nm
  2. 687 - Ground Connection 1 (on center tunnel)
    • Torque Setting 9 Nm
  3. 741 - Ground Connection Under Left Front Seat
    • Torque Setting 9 Nm
G12767437Courtesy of AUDI OF AMERICA, LLC
