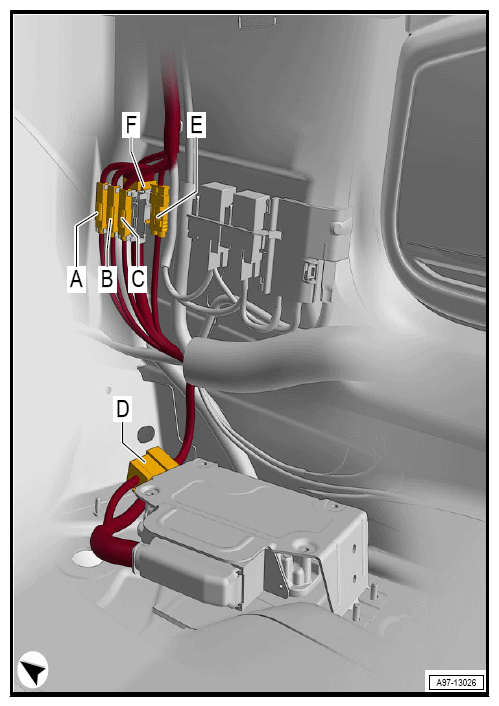

Connector Station, On Right Lower A-Pillar, RHD

1. Double Connector -T2id-, purple/Double Connector -T2idx-, purple
2. Double Connector -T2dr-, black/Double Connector -T2drx-, black
3. 2-Pin Connector -T2zj-, blue/Double Connector -T2zjx-, blue
4. 6-Pin Connector -T6aq-, green/6-Pin Connector -T6aqx-, green
5. 4-Pin Connector -T4am-, white/4-Pin Connector -T4amx-, white
6. 17-Pin Connector -T17k-, black/17-Pin Connector -T17kx-, black

Courtesy of AUDI OF AMERICA, LLC
