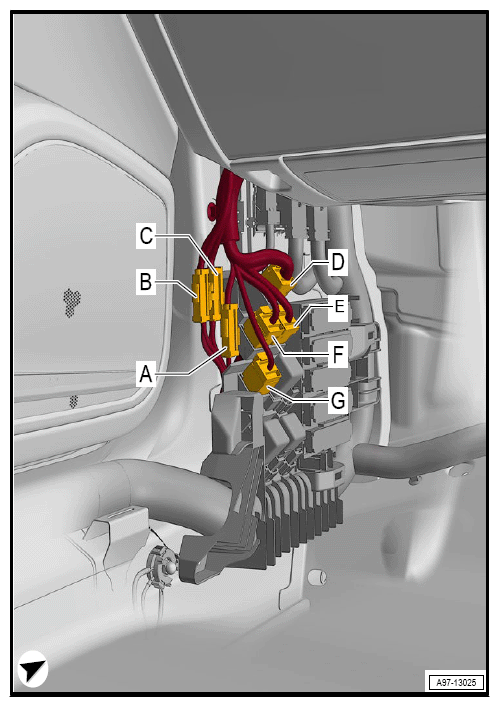

Connector Station, On Left Lower A-Pillar, RHD

  1. Double Connector -T2if-, purple/Double Connector -T2ifx-, purple
  2. 5-Pin Connector -T5u-/5-Pin Connector -T5ux-, white
  3. Double Connector -T2ac-/Double Connector -T2acx-, blue
  4. 17-Pin Connector -T17g-/17-Pin Connector -T17gx-, blue
  5. 17-Pin Connector -T17f-/17-Pin Connector -T17fx-, red
  6. 17-Pin Connector -T17h-/17-Pin Connector -T17hx-, white
  7. 17-Pin Connector -T17i-/17-Pin Connector -T17ix-, green
G12767611Courtesy of AUDI OF AMERICA, LLC
