2., 5 Mm2, 4 Mm2 Or 6 Mm2 Aluminum Wires With Separate Butt Connectors, Repairing: Procedure
-- Install the corresponding crimp insert, crimp stamp and contact positioner for the wire cross-section with the contact cross bar as follows on the crimping tool.

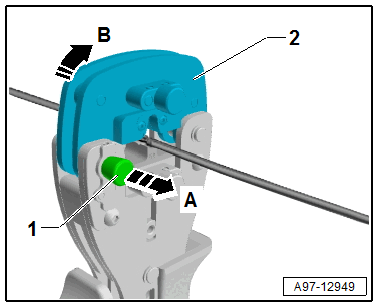

-- Open the crimping tool from the : VAS631 001 .
-- Remove the locking pin -1- all the way in the direction of -arrow A-.
-- Open the mount -2- in the direction of -arrow B-.

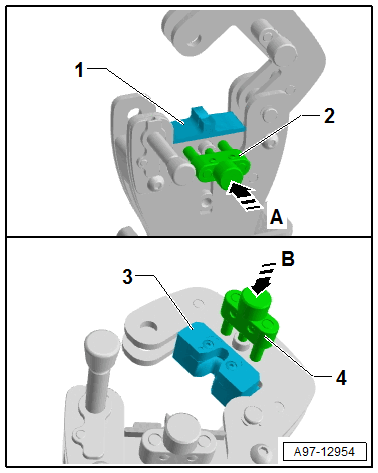

-- Insert the crimp insert -1- in the crimping tool so that the crimp insert -1- is flush with the front of the clamps.
-- Tighten the crimp insert with the pins -2- in direction of -arrow A- and the knurled screw hand tight.
-- Insert the crimp stamp -3- that fits the crimp insert in the mount.
-- Secure the crimp stamp with the pin -4- in direction of -arrow B- and the knurled screw hand-tight.
-- Close the adapter -1- in the direction of -arrow A-.
-- Push the locking pin -2- in the direction of -arrow- all the way.
-- Insert the contact cross bar -1- in the contact positioner -2-.
-- Position the contact positioner with the contact cross bar on the crimping tool -5- at the same time push the holes in the contact positioner -2- over the knurled screw -4-.
-- Install the knurled bolt -3- and tighten hand-tight.
-- Free up the wire to be repaired approximately 20 cm on both sides of the repair point.
Risk of damaging the electrical wires.
- Expose wrapped wiring harnesses carefully.
-- If necessary, removing the wiring harness wrapping.
-- Cut the damaged section of the wire with wire stripper from the : VAS631 001 .
When both ends of the vehicle-specific single wire are too short after cutting out the damaged wire section for a repair with a separate butt connector, insert a corresponding long piece of yellow copper repair wire with two butt connectors.

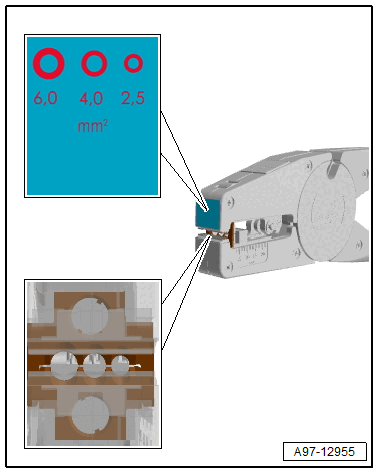

-- Insert the wire end from the front all the way in to the wire cross-section corresponding mount in the jaws of the pliers.
-- Push the pliers completely together.
-- Open pliers again and remove the stripped wire end.
- The insulation must be cut cleanly and remove from the wires.
- No insulation can remain on bare wires.
- The single wires must not be damaged.
-- For the repair remove the corresponding butt connection with a heat-shrinkable tube from the : VAS631 001 .
-- Push the heat-shrinkable tube on one of the wires.

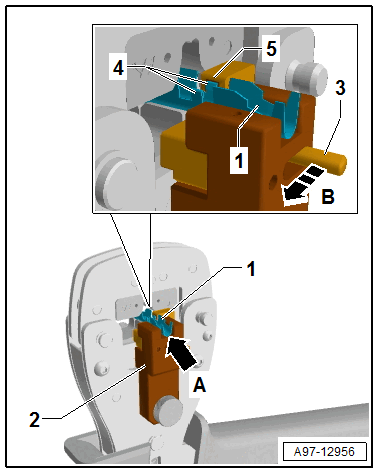

-- Place the butt connection -1- in the contact positioner -2-.
- The butt connection -1- must be flush with the contact positioner -2- -arrow A-.
-- Push the contact cross bar -3- all the way in the direction of the -arrow B- and secure it with the butt clamp -1-.
- The tab -4- on the butt connection -1- must engage in the groove -5- on the contact cross bar -3-.

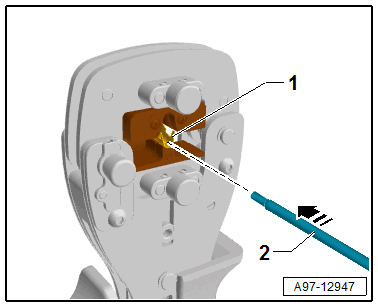

-- Insert the wire -2- with the bare wire end all the way in the butt connection -1- -arrow-.
- All single wires must be pushed into the butt connection.
- The insulation end can at a maximum be flush with the front edge of the insulation crimps.
-- Close the crimping tool completely until it reopens by itself.

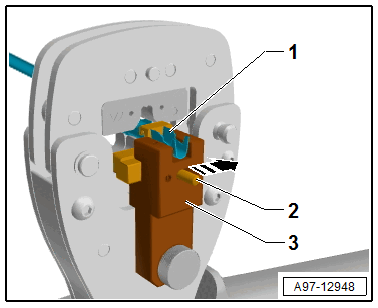

-- Push the contact cross bar -2- all the way in the direction of -arrow-.
-- Remove the butt connection -1- from the contact positioner -3-.
-- Turn the crimping tool for the second crimping.
-- Repeat the wire crimping on the other side as described.
-- Remove the securing pin -1- in the direction of -arrow A- until it stops.
-- Open the mount -2- in the direction of -arrow B-.
-- Remove the crimped butt connectors.
