Electrical Component Locations
>>
Electrical Component Locations & Connector End Views -- A4
>>
Comp. LOC. Vehicle Front Modules
>>
Left Front Headlamp -MX1-/Right Front Headlamp -MX2-
>>
Left Front Headlamp -MX1-/Right Front Headlamp -MX2-, From July 2019
Left Front Headlamp -MX1-/Right Front Headlamp -MX2-, From July 2019

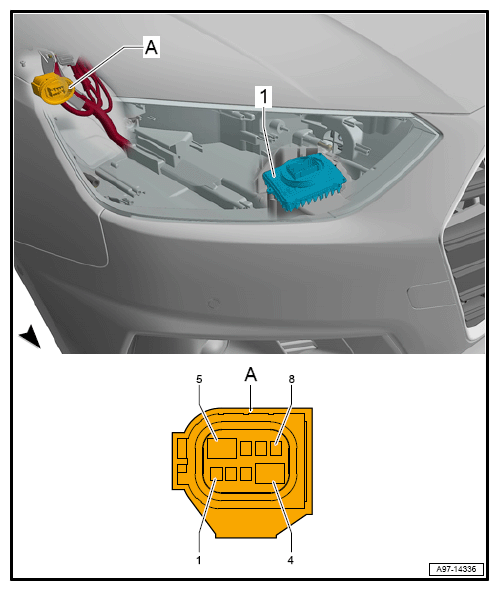

1 - Left LED Headlamp Power Output Module 1 -A31-/Right LED Headlamp Power Output Stage 1 -A27-
A - 8-Pin Connector -T8bmy-/8-Pin Connector -T8bmz-
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
