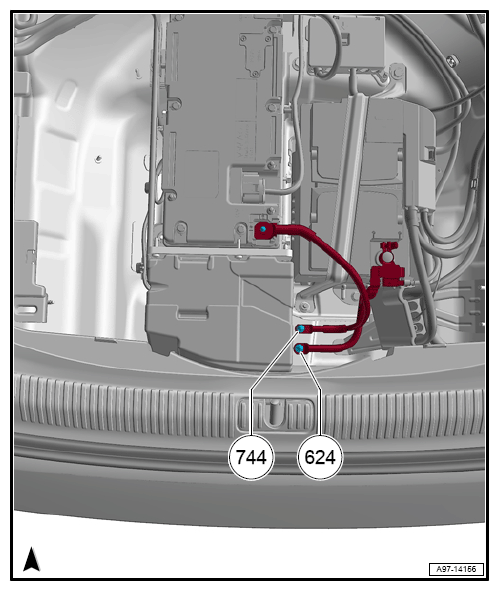

Vehicle Cabin Grounds, Center/Rear, W/48 V Hybrid System

1. 624 - Ground Connection (near starter battery)
   • for vehicles with 48 V hybrid system
   • Torque Setting 18 Nm
2. 744 - Ground Connection in spare tire well
   • for vehicles with 48 V hybrid system
   • Torque Setting 18 Nm

Courtesy of AUDI OF AMERICA, LLC
