Vacuum Pump, Removing And Installing, 3.0L TFSI Engine: Removing

-- Remove the lower air duct pipe. Refer to CHARGE AIR SYSTEM[For engine(s) DBPA] .

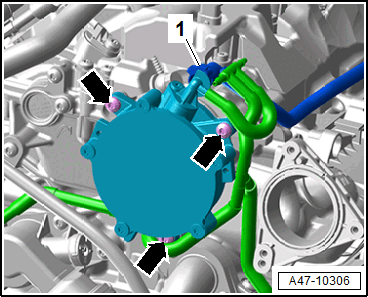

-- Loosen the hose clamp -1-, remove the vacuum line and do not damage it while doing so.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the vacuum pump.
