Overview - Vacuum Pump, 3.0L TDI Engine

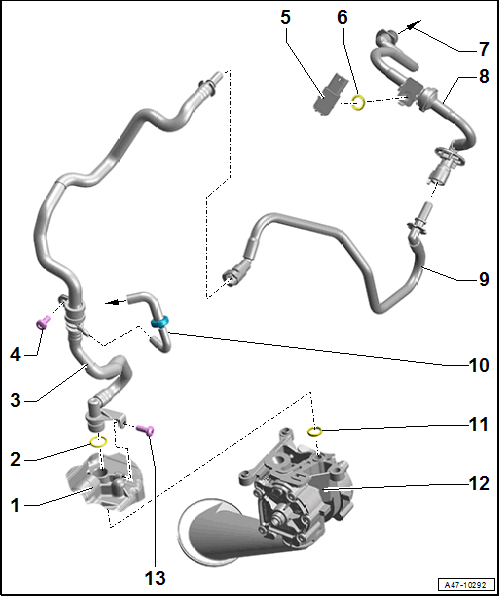

Fig 1: Exploded View Of Vacuum Pump, 3.0L TDI Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vacuum Pump
- Integrated in the oil pump -Item ) OVERVIEW - VACUUM PUMP, 3.0L TDI ENGINE - OIL PUMP WITH VACUUM PUMP
Seal
- Replace after removing.
Vacuum Line
Bolt
- 9 Nm
Vacuum Sensor -G608-
- BRAKE BOOSTER PRESSURE SENSOR, REMOVING AND INSTALLING
O-Ring
- Cannot be replaced separately
- If damaged, replace the Vacuum Sensor -G608-
To the Brake Booster
Vacuum Line
- With integrated check valve; cannot be replaced separately
- CHECK VALVE, CHECKING
- CHECK VALVE, REMOVING AND INSTALLING, WITH VACUUM LINE IN PLENUM CHAMBER
Vacuum Line
Vacuum Line
- With integrated check valve; cannot be replaced separately
- CHECK VALVE, CHECKING
- CHECK VALVE, REMOVING AND INSTALLING, WITH VACUUM LINE IN PLENUM CHAMBER
Seal
- Replace after removing.
Oil Pump with Vacuum Pump
- Removing and Installing. Refer to OIL FILTER/OIL PRESSURE SWITCH For engine(s) DBPA] .
Bolt
- 9 Nm
