Front Wheel Spoiler, Removing And Installing: Removing

-- Remove the drive axle cover. Refer to DRIVE AXLE COVER, REMOVING AND INSTALLING .

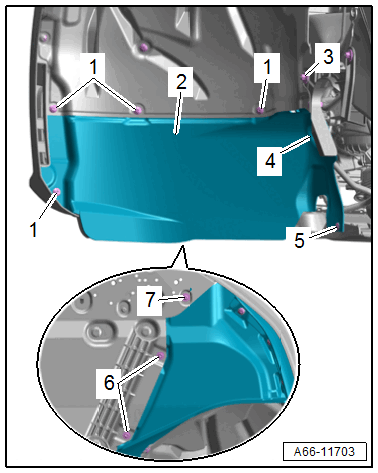

-- Remove the bolts -1 and 7-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -5-.

-- Remove the clip -4- /remove the bolt.

-- Remove the front nut -3- for the drive axle cover.

-- Loosen the quick release -6- and remove the wheel spoiler -2-.

-- Free up the breather hose for the headlamps.
