Front Wheel Housing Liner, Removing And Installing: Removing

-- Remove the drive axle cover. Refer to DRIVE AXLE COVER, REMOVING AND INSTALLING .

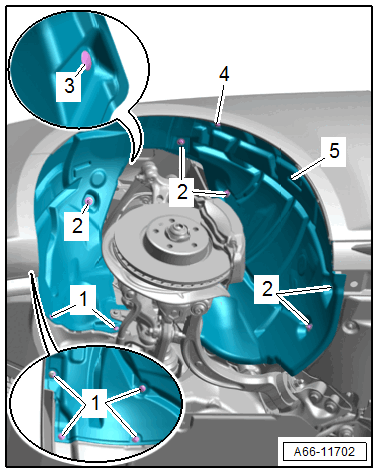

-- Remove the clip -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4- and then disengage the bracket from the fender.

-- Remove the nut -2- and bolts -1-.

-- Remove the wheel housing liner -5-.
