Rear Diagonal Braces, Removing And Installing, RS4: Removing
CAUTION:
- When installing, position the bolts by hand and screw in the first threads.
- Do not loosen or tighten the bolts with an impact wrench.

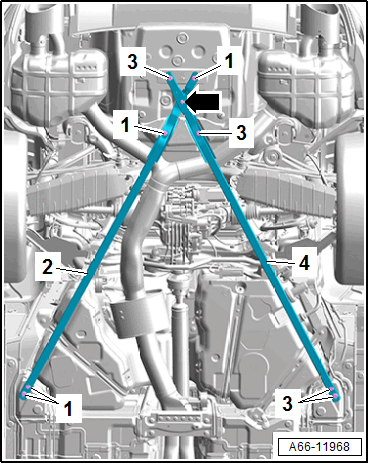

-- Remove the bolts -1 and 3- as well as -arrow- and the diagonal braces -2 and 4-.
 Courtesy of AUDI OF AMERICA, LLC
|
