Front Diagonal Braces, Removing And Installing: Removing
CAUTION:
- When installing, position the bolts by hand and screw in the first threads.
- Do not loosen or tighten the bolts with an impact wrench.
-- Remove the front underbody panel. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING, REAR .

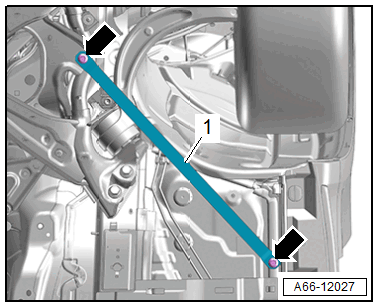

-- Remove the bolts -arrows- and then remove the diagonal brace -1-.
