Center Underbody Trim Panel, Removing And Installing: Removing

-- Cabriolet:  remove the impact guard. Refer to IMPACT GUARD, REMOVING AND INSTALLING .

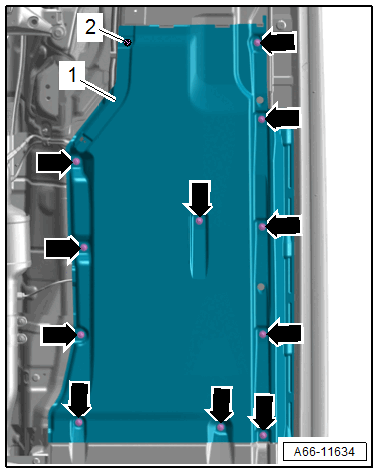

-- Remove the nuts -arrows- and the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center underbody trim panel -1-.
