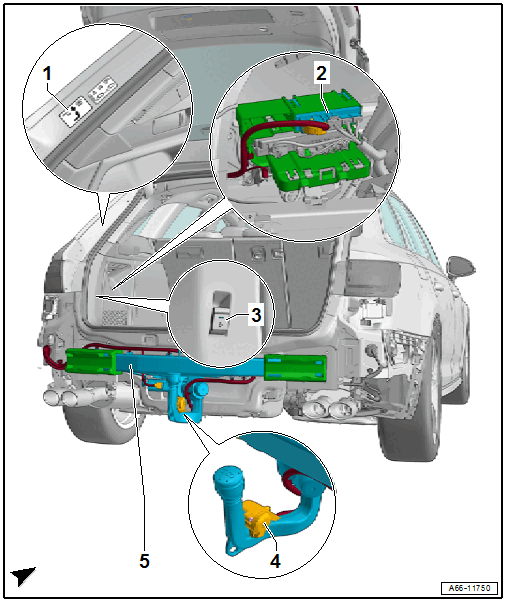

Overview - Trailer Hitch
- Information Label
- On the body on the left rear
- Towing Recognition Control Module -J345-
- Removing and Installing. Refer to TOWING RECOGNITION CONTROL MODULE -J345-, REMOVING AND INSTALLING .
- Trailer Hitch Release Button -E754-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT (TRAILER HITCH RELEASE BUTTON) .
- Trailer Socket -U10-
- Removing and Installing. Refer to TRAILER HITCH - TRAILER SOCKET .
- Trailer Hitch
- Only removable with the impact member
- Equipped on some models: with Trailer Hitch Bend Angle Sensor -G820-, Removing and Installing. Refer to TRAILER HITCH BEND ANGLE SENSOR -G820-, REMOVING AND INSTALLING .
- Removing and Installing. Refer to OVERVIEW - IMPACT MEMBER .
