Second Technician

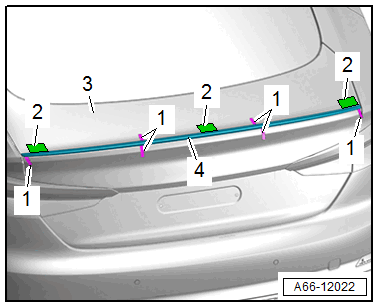

-- Position the spoiler -4- according to the label applied on the rear lid -3- with a SECOND TECHNICIAN  and align at the sides.

GWWA66-12022Courtesy of AUDI OF AMERICA, LLC

-- Remove the protective film on the removal aid -1- from the inside outward.

-- Press on the spoiler first on the outer edge and then on the inner edge over the entire length.
