Overview - Spoiler, A4 AVANT

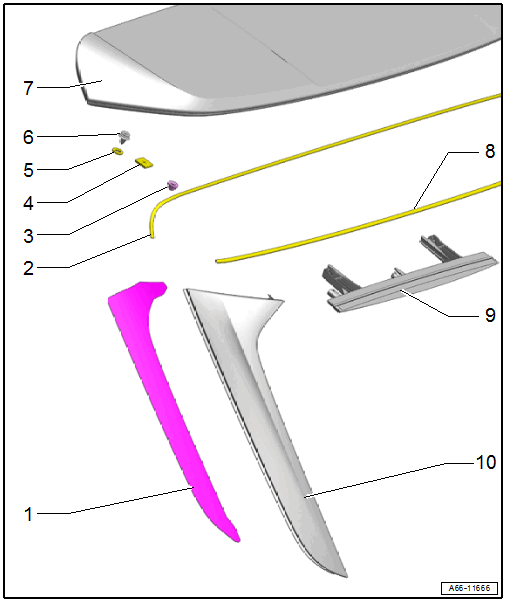

Fig 1: Spoiler, A4 Avant

Courtesy of AUDI OF AMERICA, LLC

Adhesive Tape
- Replace after removal of the side spoiler -item ) OVERVIEW - SPOILER, A4 AVANT - SPOILER (SIDE SPOILER, REMOVING AND INSTALLING )
Foam Seal
- Front
Nut
- 4 Nm
- Quantity 4
Foam Seal
- For the securing pin
- Quantity: 3
Foam Seal
- For the clips
- Quantity: 7
Clip
- Quantity: 7
Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
Foam Seal
- Rear
High-Mounted Brake Lamp
- Overview. Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP .
Spoiler
- Side
- Removing and Installing. Refer to SIDE SPOILER, REMOVING AND INSTALLING .
