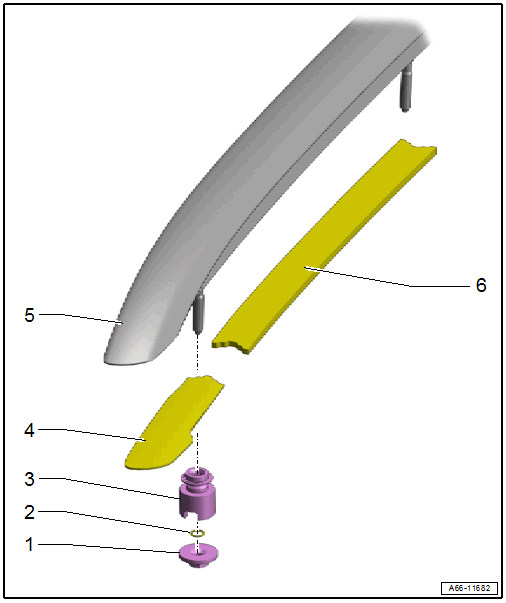

Overview - Roof Railing: Notes
- Nut
- Quantity: 4
- Insert with locking fluid. Refer to the Parts Information.

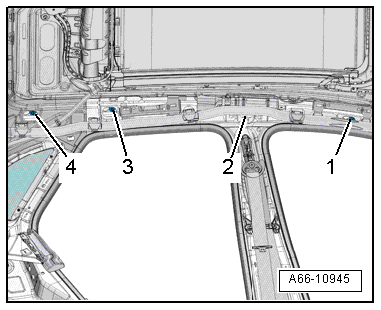

- Tightening specification and sequence. Refer to Figure.
- O-Ring
- Replace if damaged
- Lifter
- 0.5 Nm
- Quantity: 4
- Removing and Installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Install with locking compound. Refer to the Parts Information for the locking compound.
- Seal
- Roof Railing
- Removing and Installing. Refer to ROOF RAILING, REMOVING AND INSTALLING .
- Seal
- Quantity: 3
