Noise Insulation, Removing And Installing, Front: Removing

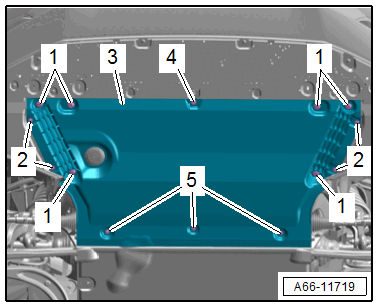

A4, A5 COUPE AND A5 SPORTBACK:

Fig 1: Front Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

-- Loosen the quick-release fasteners -2, 4 and 5-.

-- Remove the front noise insulation -3-.

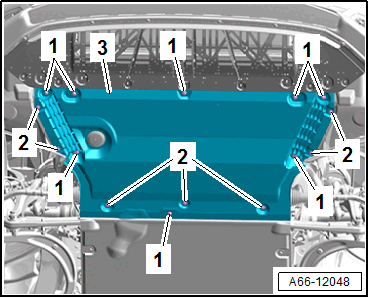

RS4, RS5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

-- Loosen the quick-release fasteners -2-.

-- Remove the front noise insulation -3-.

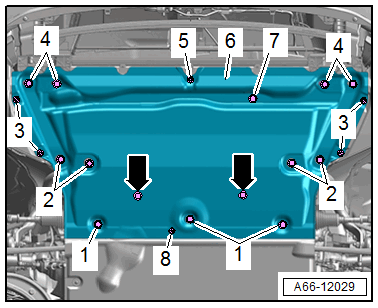

A5 CABRIOLET:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2, 4, 7 and 8-.

-- Remove the expanding rivets -arrows-.

-- Loosen the quick-release fasteners -3 and 5-.

-- Remove the front noise insulation -6-.
