Roof Trim Molding, Removing And Installing: Installing

Install in reverse order of removal and Note The Following:

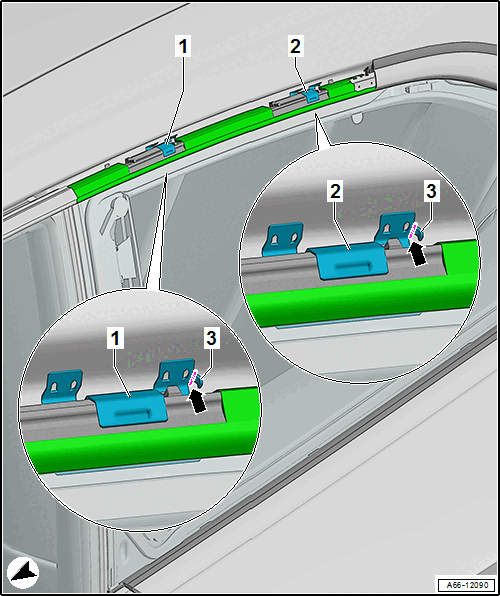

-- A5 Coupe, From 11/2016: disconnect the tabs -3- on the clips -1 and 2- and the marks -arrow-.

Courtesy of AUDI OF AMERICA, LLC

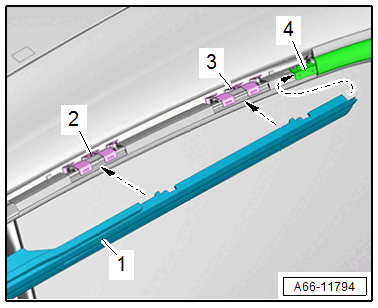

-- A5 Coupe:  insert the roof trim molding -1- in the clamps -2 and 3- and push on the side window trim molding connecting clamp -4-.

Courtesy of AUDI OF AMERICA, LLC

• The clamp must inserted correctly into the guide.
• The roof trim molding be touching the end of the side window trim molding.

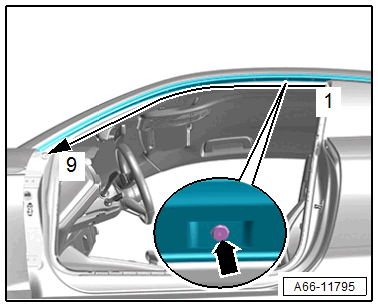

-- Rivet the roof trim molding with the rivet -arrow- in the sequence -1 to 9-.

Courtesy of AUDI OF AMERICA, LLC
