Sill Panel Trim, Removing And Installing: Removing

Versions With Illuminated Sill Panel:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front sill panel. Refer to OVERVIEW - SILL PANEL / SILL PANEL, REMOVING AND INSTALLING

-- Loosen the inner door seal in the area of the wiring harnesses.

-- Push the carpet to the side.

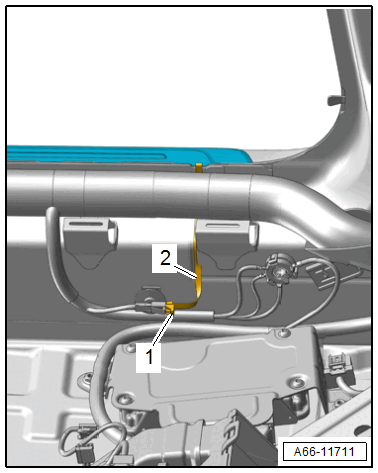

-- Disconnect the connector -1- and free up the wiring harness -2-.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

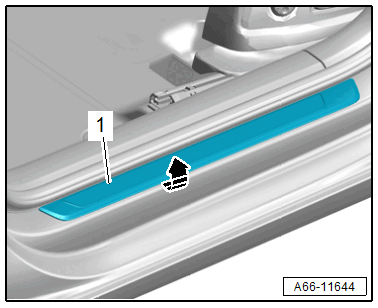

-- Carefully warm up the sill panel trim -1- using the :VAS1978/14A  .

-- Carefully pry out the sill panel trim from the side sill -arrow- using the :3409  . Do not damage the paint coat while doing so.
