Side Sill Trim Panel, Removing And Installing, RS4: Removing

-- Loosen the front wheel housing liner at the rear and press it to the side. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

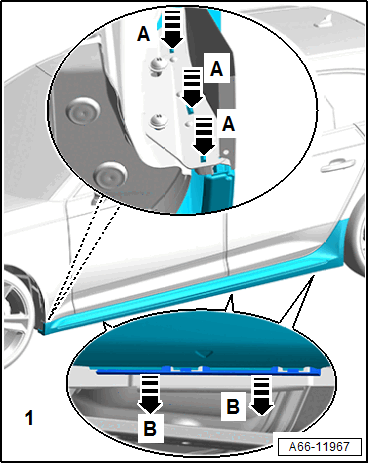

-- Release the retainers -B arrows- and remove the side sill trim panel from the securing strip.

GWWA66-11967Courtesy of AUDI OF AMERICA, LLC

-- Retainers the catches -A arrows- and remove the lower side sill trim panel from the front fender.

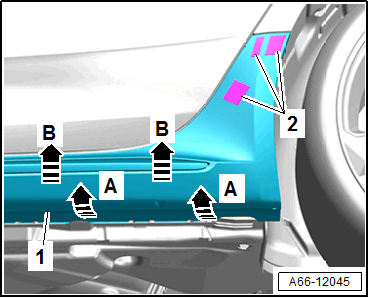

-- Warm up the side sill trim panel -1- using the :VAS1978/14A  in the adhesion area -2- and loosen from the bonding.

GWWA66-12045Courtesy of AUDI OF AMERICA, LLC

-- Push the side sill trim panel upward -B arrows- and pivot in the direction of the -arrow A-.

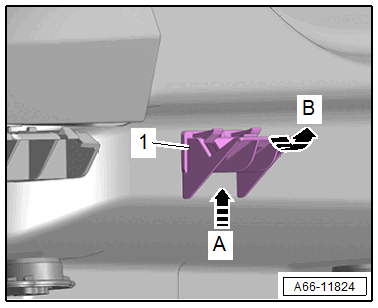

-- Push the rear bracket -1- upward -arrow A- and pivot on the bottom outward -arrow B- and remove.

GWWA66-11824Courtesy of AUDI OF AMERICA, LLC
