Side Sill Trim Panel, Removing And Installing, A4: Removing

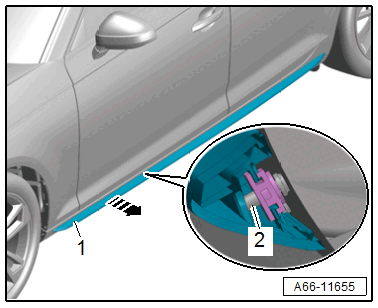

-- Carefully warm up the side sill trim panel -1- using the :VAS1978/14A  .

GWWA66-11655Courtesy of AUDI OF AMERICA, LLC

-- Use the :3409  to carefully pry the side sill trim panel off the threaded pins -2- -arrow-.

-- Remove the side sill trim panel and lay it on a soft surface.
