Side Sill Trim Panel, Removing And Installing, A4: Installing

Install in reverse order of removal and Note The Following:

• The vehicle and the trim panel must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

-- Apply Bonding Agent:D 355 205 A2  -1- on the painted side of the adhesive surface -2- using the Applicator:D 009 500 25  -3- and let it dry for ten minutes.

Fig 1: Applying Bonding Agent To Adhesive Surface On Paint Side Using Applicator

Courtesy of AUDI OF AMERICA, LLC

• If the Bonding Agent:D 355 205 A2  dries longer than two hours, then it must be primed again.

-- Fold back the end of the protective film, or attach a pulling aid to the protective film.

-- Remove the protective film from the adhesive tape -2-.

Courtesy of AUDI OF AMERICA, LLC

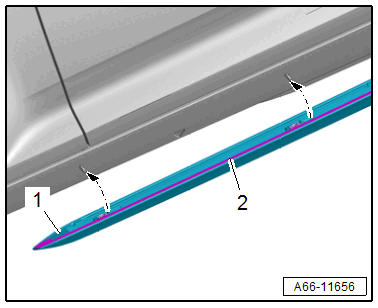

-- Position the side sill trim panel -1- over the threaded pins -arrows-.

-- Press on the entire length of the side sill trim panel.

• Vehicle resting time is at least 30 minutes at room temperature.
