Side Sill Trim Panel, Removing And Installing, A4 ALLROAD: Removing

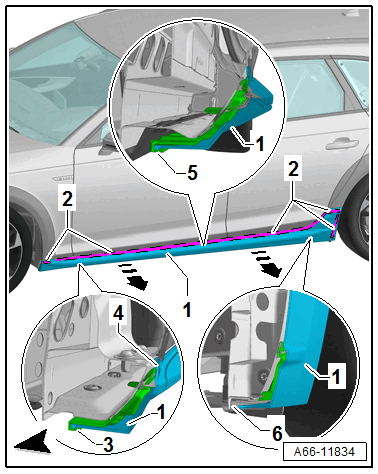

-- Release the side sill trim panel -1- from the lower edge of the securing strip -3, 5 and 6-.

GWWA66-11834Courtesy of AUDI OF AMERICA, LLC

-- Warm up the side sill trim panel -1- in the adhesion area -2- using the :VAS1978/14A  .

-- Release the side sill trim panel -1- from the upper edge of the securing strip -4-.

-- Remove the side sill trim panel -1- in stages -arrows-.
