Side Sill Trim Panel Bracket, Removing And Installing: Removing

-- Remove the side sill trim panel. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, RS4  or SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, A5 .

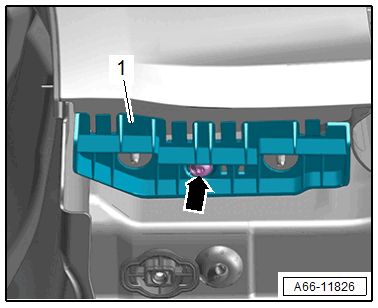

-- Remove the bolt -arrow-.

GWWA66-11826Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bracket -1- for the side sill trim panel.
