Overview - Side Sill Trim Panel, A5

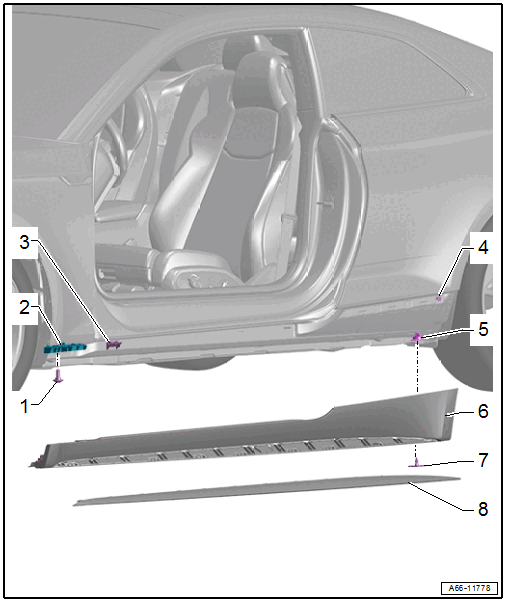

Fig 1: Side Sill Trim Panel, A5

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Bracket
- For the side sill trim panel
- Front
- Removing and Installing. Refer to SIDE SILL TRIM PANEL BRACKET, REMOVING AND INSTALLING .
Bracket
- For the side sill trim panel
- Rear
- Quantity: 5
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, A5 .
Clip
- A5 Coupe only
- Quantity 4
Mount
- Quantity: 7
- Removing and Installing. Refer to MOUNT, REMOVING AND INSTALLING .
Side Sill Trim Panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, A5 .
Quick Release
- Quantity: 7
Cover Strip
- RS5: replacing after removal
- Removing and Installing. Refer to COVER STRIP FOR SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, A5 .
