Overview - C-Pillar Trim

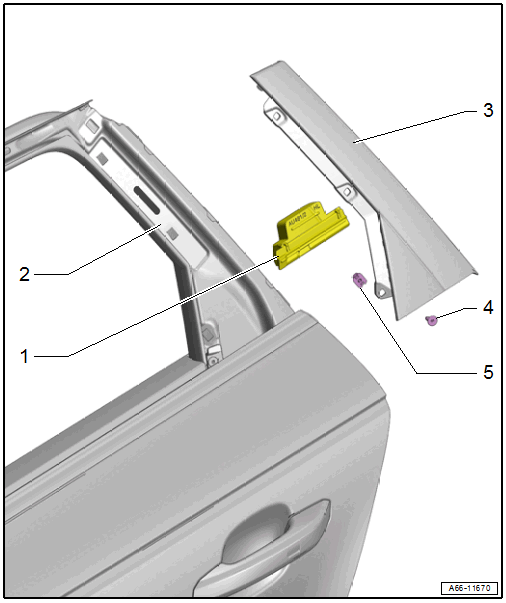

Fig 1: C-Pillar Trim
GWWA66-11670Courtesy of AUDI OF AMERICA, LLC
  1. Sealing Piece
    • For the rear door C-pillar trim
  2. Rear Door
  3. Door C-Pillar Trim
  4. Bolt
    • 2.5 Nm
    • Quantity: 3
  5. Clip Nut
    • Quantity: 3
