Side Sill Cover, Removing And Installing:

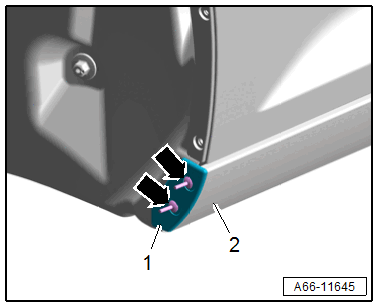

GWWA66-11645Courtesy of AUDI OF AMERICA, LLC

REMOVING

-- Remove the expanding rivets -arrows-.

-- Remove the cover -1- from the side sill -2-.

INSTALLING

Install in reverse order of removal.
