Fender Cover, Removing And Installing:

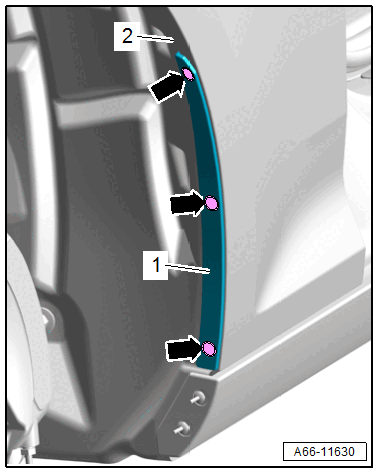

GWWA66-11630Courtesy of AUDI OF AMERICA, LLC

REMOVING

-- Remove the expanding rivets -arrows-.

-- Remove the cover -1- from the fender -2-.

INSTALLING

Install in reverse order of removal.
