Upper Front Tunnel Heat Shield, Removing And Installing: Removing

--TFSI Vehicles:  remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING [CVKB, CWNA, CVLA, DEMA, DKUA] .

-- TDI Vehicles:  remove the front exhaust pipe. Refer to the appropriate service information.

-- Remove The Driveshaft. Refer to the appropriate service information.

-- Place the :T10337  on the :VAS6931  and position it at the bottom of the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel crossmember bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

For reasons of clarity, the :T10337  is not shown.

-- Lower the engine/transmission assembly by dimension -a- using the :VAS6931  .

Fig 1: Engine And Gearbox Jack VAS 6931

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = maximum 40 mm.

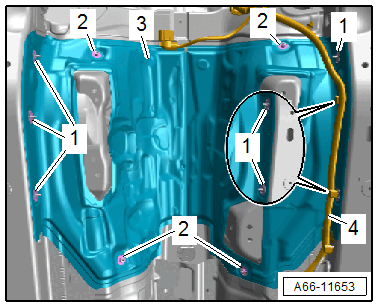

-- Free up the wiring harness -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock washers -1-.

-- Remove the nuts -2-.

-- Remove the heat shield -3-.
